370-6692 225-4526 E349 349E L E349D Arm Cylinder Excavator Hydraulic Cylinder
Product Description
| Product Name | Hydraulic Arm Cylinder Stick Cylinder |
| Model | E349 349E L E349D |
| Temperature Range | -30-100°C |
| Part Number
| 370-6692 225-4526 358-8461 358-8461 225-4526 358-8461 |
| Pressure Range | 21 MPa to 35 MPa |
| Dimensions | Customized |
| OEM
| Yes |
List Of Spare Parts
370-6692
| Pos. | Part No | Qty | Part Name |
| 1 | 358-8462 | 1 | CYLINDER AS |
| 1A | 126-1956 | 1 | BUSHING |
| 2 | 358-8472 | 1 | ROD AS |
| 2A | 228-5618 | 1 | BUSHING |
| 3 | 370-6693 | 1 | HEAD |
| 4 | 370-6664 | 1 | SEAL-O-RING |
| 5 | 370-6665 | 2 | RING-BACKUP |
| 6 | 165-9293 | 1 | SEAL-LIP TYPE |
| 7 | 087-5397 | 1 | RING-BACKUP |
| 8 | 333-8673 | 1 | SEAL-U-CUP |
| 9 | 333-8672 | 1 | SEAL-BUFFER |
| 10 | 114-0763 | 1 | BUSHING |
| 11 | 087-5393 | 1 | RING-RETAINING |
| 12 | 200-3620 | 1 | RING-SEAL |
| 13 | 359-7190 | 1 | STOP |
| 14 | 358-8478 | 1 | PISTON |
| 15 | 204-2845 | 2 | RING |
| 16 | 495-8218 | 1 | SEAL AS |
| 17 | 204-2846 | 1 | RING |
| 18 | 126-1971 | 1 | LOCKNUT-SPECIAL |
| 19 | 225-4641 | 1 | RING-RETAINING |
| 20 | 225-4642 | 1 | RING |
| 21 | 095-0930 | 2 | RING-RETAINING |

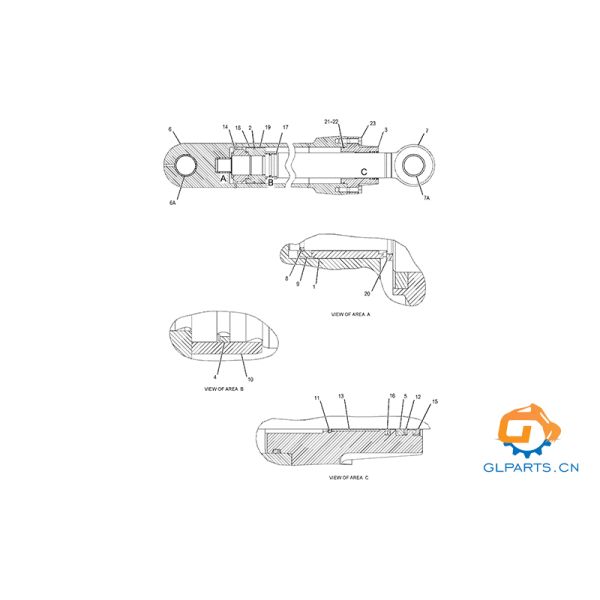

225-4526
| Pos. | Part No | Qty | Parts Name |
| 1 | 359-7189 | 1 | STOP |
| 2 | 125-1286 | 1 | SEAL AS |
| 3 | 358-8479 | 1 | HEAD |
| 4 | 200-3620 | 1 | RING-SEAL |
| 5 | 333-8673 | 1 | SEAL-U-CUP |
| 6 | 225-4626 | 1 | CYLINDER AS |
| 6A | 126-1956 | 1 | BUSHING |
| 7 | 358-8472 | 1 | ROD AS |
| 7A | 228-5618 | 1 | BUSHING |
| 8 | 225-4641 | 1 | RING-RETAINING |
| 9 | 225-4642 | 1 | RING |
| 10 | 087-5390 | 1 | STOP |
| 11 | 087-5393 | 1 | RING-RETAINING |
| 12 | 087-5397 | 1 | RING-BACKUP |
| 13 | 114-0763 | 1 | BUSHING |
| 14 | 126-1971 | 1 | LOCKNUT-SPECIAL |
| 15 | 165-9293 | 1 | SEAL-LIP TYPE |
| 16 | 333-8672 | 1 | SEAL-BUFFER |
| 17 | 204-2844 | 1 | PISTON |
| 18 | 204-2845 | 2 | RING |
| 19 | 204-2846 | 1 | RING |
| 20 | 095-0930 | 2 | RING-RETAINING (EXTERNAL) |
| 21 | 095-1730 | 1 | SEAL-O-RING |
| 22 | 126-1978 | 1 | RING-BACKUP |
| 23 | 7X-2489 | 10 | BOLT (M24X3X100-MM) |
| AVAILABLE REPAIR KIT(S): |
|
|
| 331-9328 |
|
|
Company Information
GuangZhou GuoLi Engineering Machinery Co., Ltd., with over 16 years of experience in excavator hydraulic cylinders, is a foreign trade company specializing in a wide range of products, including crawler excavator arm cylinders, boom cylinders, bucket cylinders, cylinder tubes, cylinder rods, custom hydraulic cylinders, seal kits, hydraulic pumps, and electric parts, all designed for various excavator models. Our products have been exported to over 100 countries and regions worldwide.
Factory Tour
Our main product, excavator cylinders, is produced through a complete hydraulic cylinder production line, from design to manufacturing. With over ten years of experience, we’ve upgraded our offerings to multi-stage hydraulic cylinders. We focus on cylinder customization and produce a variety of domestic and imported excavator cylinders. Using advanced CNC lathes, grinders, and assembly equipment, we strictly follow ISO quality standards throughout production.

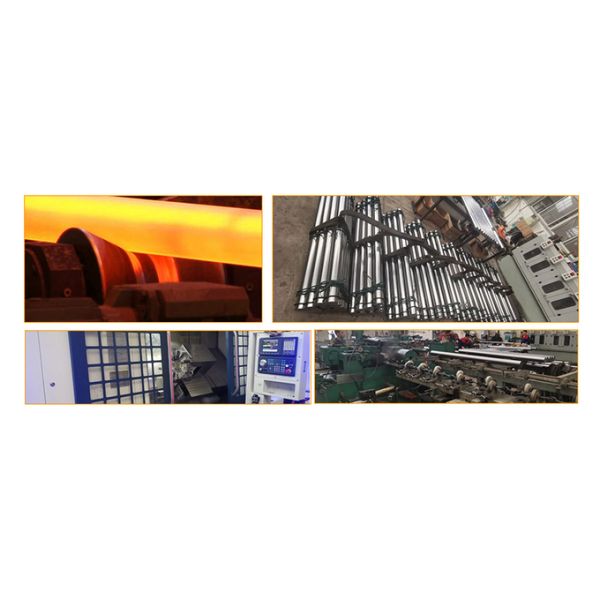

Piston Rod Production Process
Automatic Welding Process
Finished Product Warehouse Display
Exhibition Showcase
Our Presence at Major Exhibitions: 2023 Malaysia & 2024 Shanghai Bauma
Exhibition With Cooperated Clients
